Topsung Industrial Co.,Ltd
9 Years
| Ask Lasest Price | |
| Brand Name : | Topsung |
| Certification : | CE,ROHS,UL |

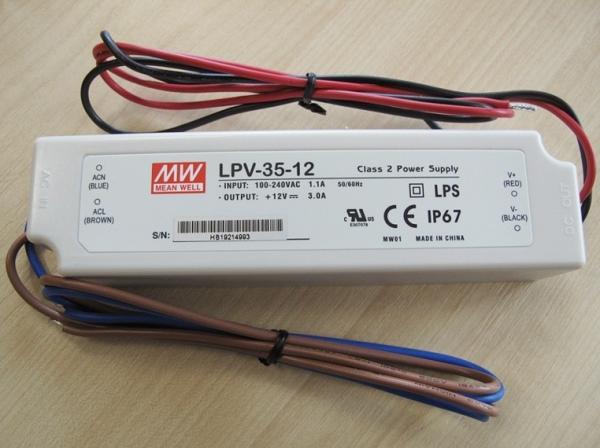

| Model Number : | lpv-35-12 |
| Price : | US$10-40/pcs |
| Delivery Time : | 5-7 working days |
| Payment Terms : | L/C,T/T,Western union,Money Gram,Paypal |
| Supply Ability : | 5000pcs per week |
Manufacturer: Topsung Lighting
| Input Voltage | 90 ~ 264Vac |
|---|---|
| Input Frequency | 47 ~ 63Hz |
| Input Current | 1.2A/115Vac 1A/230Vac |
| Inrush Current | 30A/115Vac 60A/230Vac, cold start |
| Leakage Current | 0.25mA / 240Vac |
| Line Regulation | ±1.0% |
| Set Up, Rise Time | 500ms, 20ms / 230Vac 500ms, 20ms / 115Vac at full load (for 5~36V) |
| 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load(for 48V) | |
| Hold Up Time | 50ms/230Vac 16ms/115Vac at full load |
| Over Current Protection | 110 ~ 150% rated output power |
| Hiccup mode, recovers automatically after fault condition is removed | |
| Over Voltage Protection | Shut down o/p voltage, re-power on to recover |
| Working Temperature | -30°C ~ +70°C (Refer to output load derating curve) |
| Working Humidity | 20 ~ 90% RH non-condensing |
| Storage Temperature, Humidity | -40°C ~ +80°C, 10 ~ 95% RH |
| Temperature Coefficient | ±0.03%/°C (0 ~ 50°C) |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| Withstand Voltage | I/P-O/P:3KVAC |
| Isolation Resistance | I/P-O/P:>100M Ohms/500VDC 25°C 70%RH |
| Safety Standards | UL1310 Class 2, CAN/CSA C22.2 No. 223-M91(except for 5V,48V), IP67 approved, |
| Design refers to TUV EN60950-1, EN61347-2-13 | |
| EMC | Compliance to EN55022 (CISPR22) Class B; EN61000-3-2,-3; |
| EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A | |
| MTBF | 732Khrs min. MIL-HDBK-217F (25°C) |
| Dimensions | 162.5 x 42.5 x 32mm |
Meanwell LPV power supply:we have 35W,60W,100W,150W
More pictures for power supply
Most of our Products has passed CE,ROHS, FCC, PSE, certificate
Shenzhen Topsung Lighting Co.,Limited with 8 years' rich experience on design/develop/export LED Products is one of the Factory of Topsung Industrial Co.,LTD. Its main procuts include: LED decoration lights (Neon, Rope, Strips,ect) & Indoor LED lights (tube, bulb, downlight, panel light,ect). Topsung Lighting cares about customer's request and deveoped new design lighting products. Welcome your inquiry!
Tel: 86-15986729150 Mail: lighting (at)topsung-tech.cn Skype:lilyhu2013
Thanks for reading!Feel free to contact us for the update information & price!
|
|
